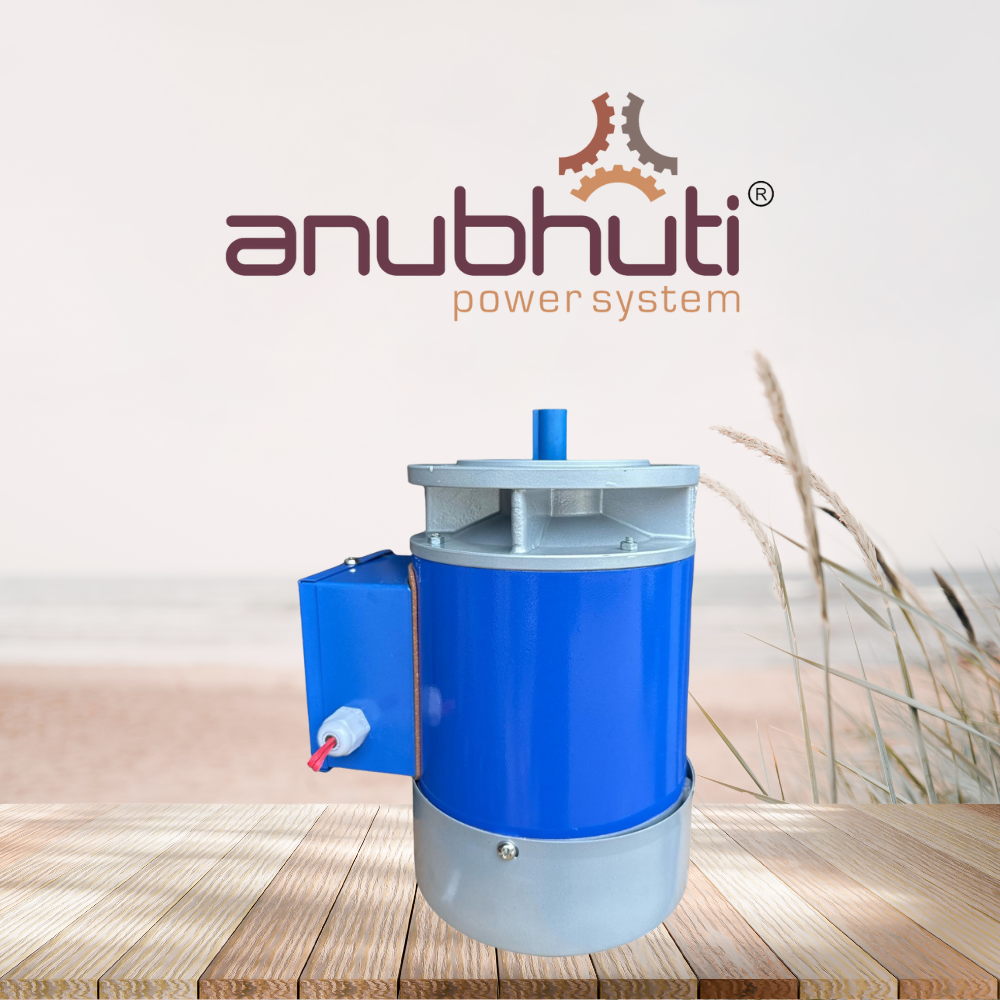

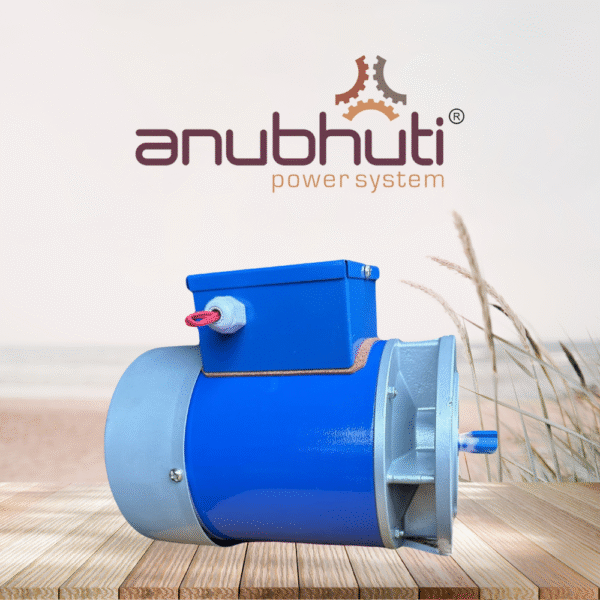

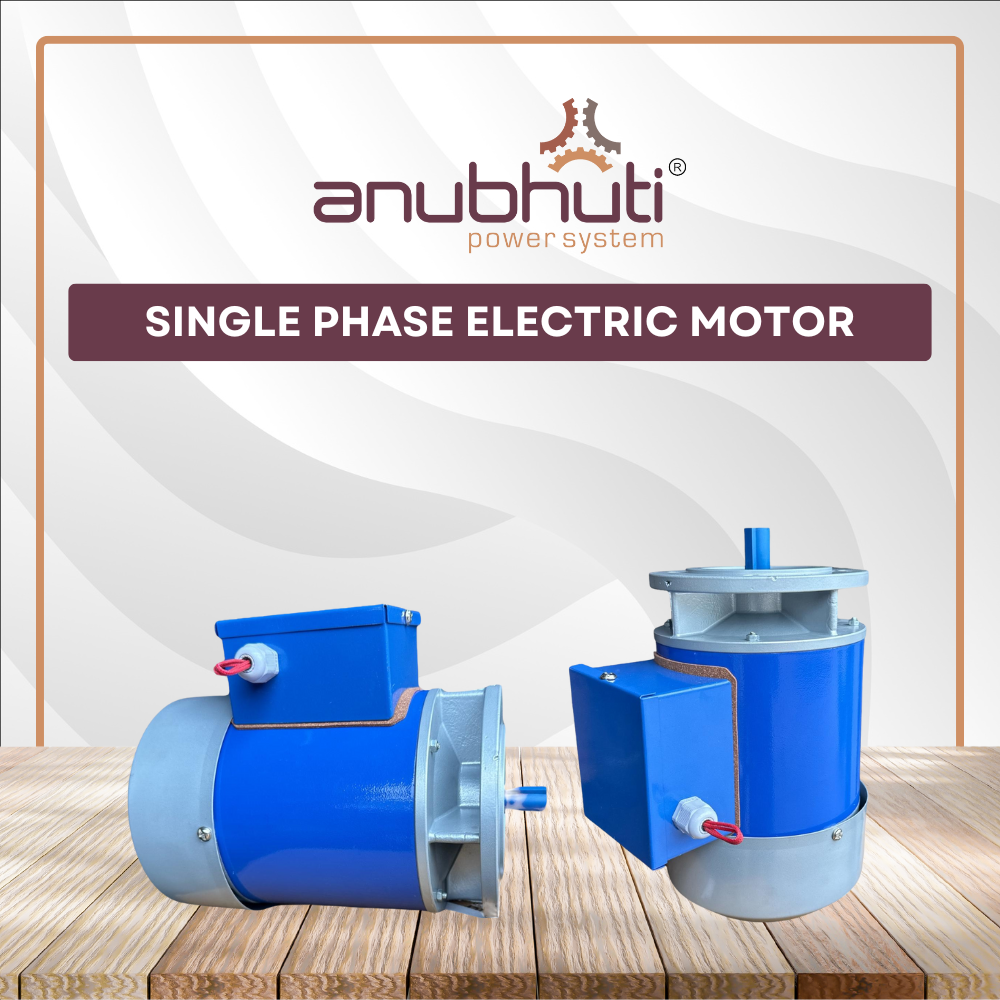

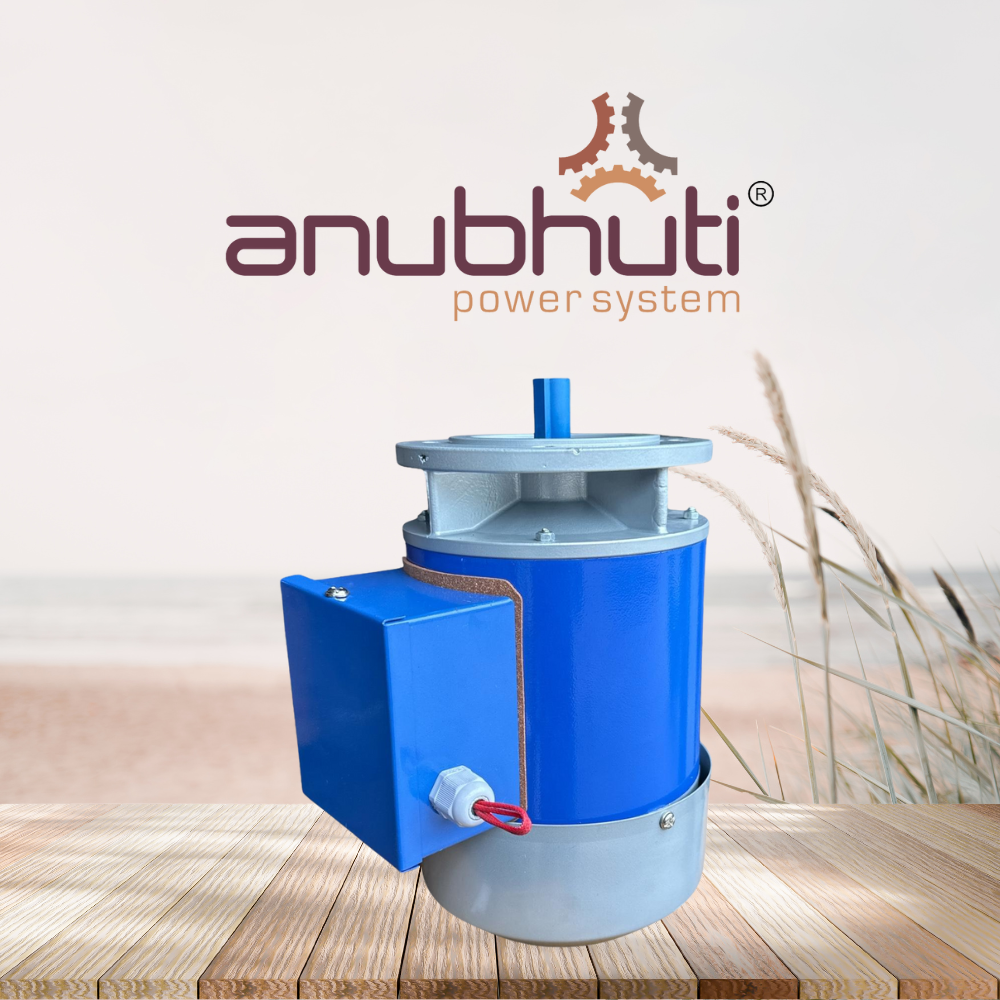

SINGLE PHASE ELECTIC MOTOR

Single-phase motors are reliable electric machines widely used for low-power applications. Operating on single-phase AC power, they are compact, efficient, and easy to maintain. Ideal for domestic, commercial, and light industrial use, they offer consistent performance and durability, making them essential in various fields.
Frame K.W. H.P. R.P.M. I.Class Duty Enclosure Protection
63 to 112 M 0.18 to 2.2 kw 0.25 to 3.0 hp 1440
2880 rpm		 F S1 TEFC
TESC		 IP 55

All Motor Design As Per IEC:34/7 available in B3, B5 & B14 Mountings.

Specifications

Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request, we can supply motor in aluminium body up to 100 L frame.
Ratings: All Standard Three-phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Enclosures: Motor IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Range:

Range :0.10 H.P. to 20 H.P. (0.075 K.W. to 15 K.W.) Frame 63 to 160L in 2, 4, 6, & 8 Pole
Mounting: Foot – Flange – Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223

Quick Contact!

+91 98256 76758
+91 90818 27474

Get Inquiry Now

    Key Features of Single Phase Motor

    • Compact DesignSpace-saving build for easy installation in small spaces and portable applications.
    • Energy EfficientConsumes minimal power while delivering optimal performance for cost-effective operation.
    • Durable ConstructionBuilt to last, capable of withstanding regular use and minor overload conditions.
    • Low MaintenanceSimple design minimizes wear and tear, reducing the need for frequent servicing.
    • Quiet OperationEngineered to produce minimal noise, ensuring comfort in residential and commercial environments.
    • High Starting TorqueHigh Starting Torque Delivers robust initial power, ideal for applications with heavy starting loads.

    Applications of Single Phase Motor

    • Household Appliances
    • Pumps
    • Small Machines
    • HVAC Systems
    • Compressors
    • Food Processing
    • Medical Equipment
