PLANETARY GEARBOX

A planetary gearbox is a compact, high-efficiency mechanical device used to transmit power with reduced speed and increased torque. Its design, featuring sun, planet, and ring gears, ensures uniform load distribution and high torque capacity.

The unique arrangement of the gears allows planetary gearboxes to achieve higher torque outputs while maintaining a smaller size compared to other gearbox types. This makes them ideal for applications requiring precision, reliability, and performance under demanding conditions. With their ability to handle heavy loads, maintain operational efficiency, and offer customizable gear ratios, planetary gearboxes have become indispensable in industries ranging from robotics and aerospace to renewable energy and automotive manufacturing.

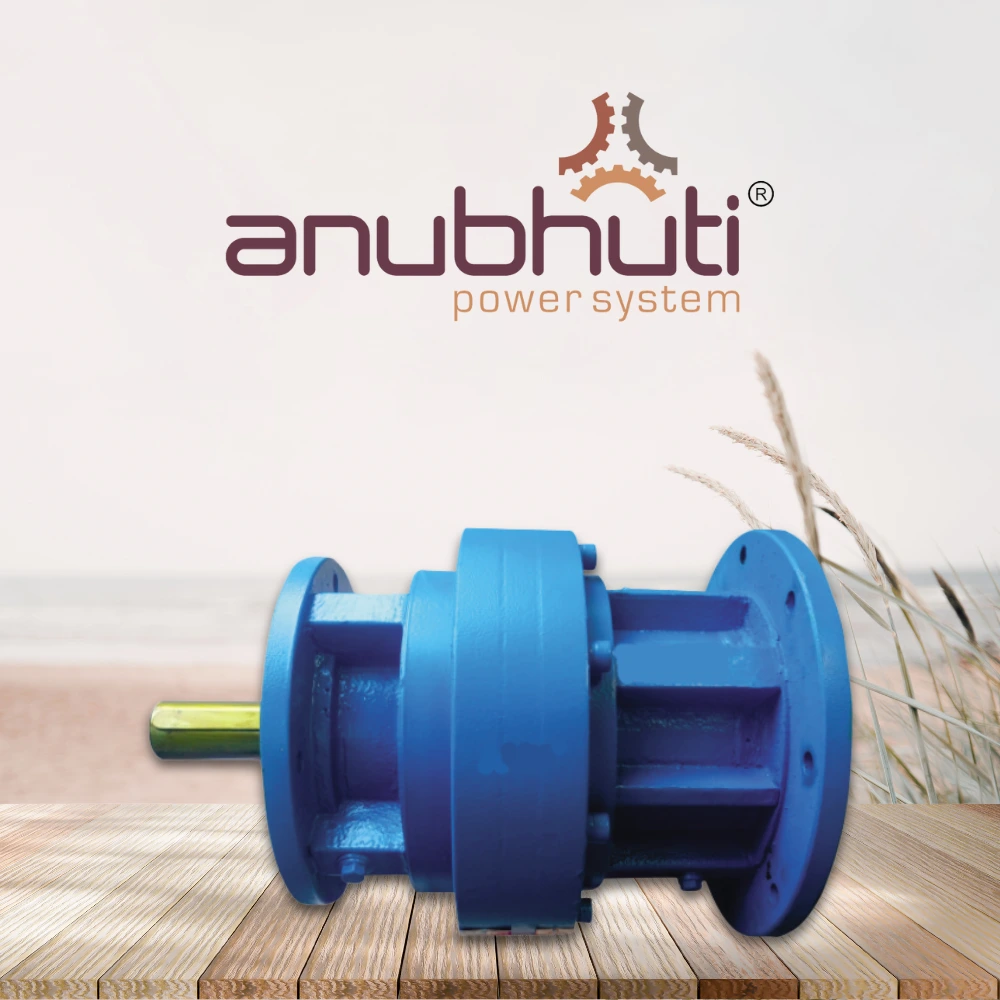

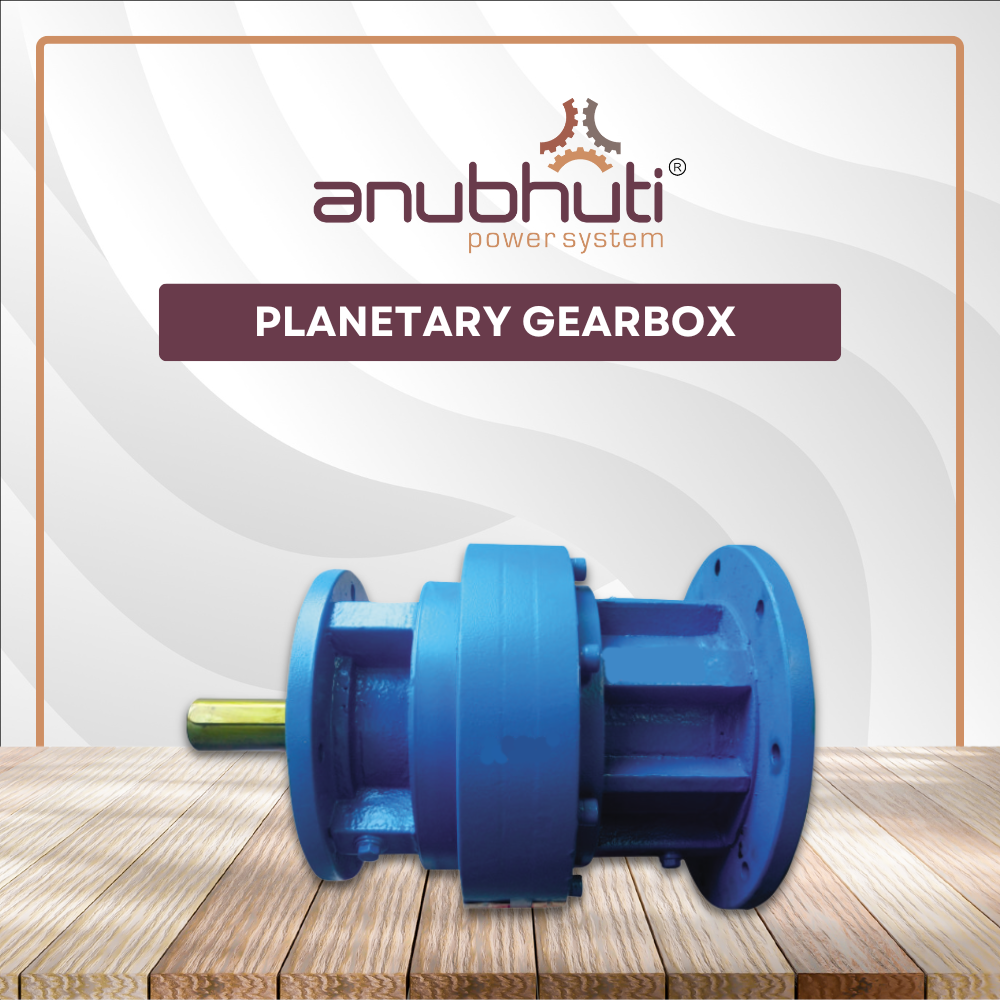

Planetary Gearbox

Features: –

Anubhuti  gear box offers many advantages as compared to other type gearbox.

  • Higher Torque to Weight Ratio
  • Compact Size
  • Improved Efficiency
  • High cyclic and radial load carrying capacity.
  • Modular Construction allowing assembly in several stages.
  • Low Backslash
  • Less Weight
Application: –
  • Wind Turbines
  • Sugar industry
  • Material handling and equipment
  • Robotics Machinery
  • packaging Machinery
  • Power Industry
  • Automotive Industry
  • Medical Equipment
  • Aviation Equipment

Material:-

Sun Gear and Planet: -Gears and Planets are made high alloy steel and heat treated for case carburising and hardening.

Ring Gears: –Ring Gears are mase from high alloy steel toughened to absorb load.

Planet Carriers: –Planet Carriers are made from high alloy steel casting or forging or bars.

Input and Output Shaft: –Shafts are made from high alloy steel and toughened to achieve strength.

Casing Housing: –Casing are made of graded cast iron, cast steel.

Technical Specification: –

Reduction Ratio: –  3 to 1000:1
Rated Torque: -0.5 kg-m to 14500 kg-m
Input Power: -0.25 HP to 50 HP
Input Speed: -1440 RPM,960 RPM
Prime Mover: -Electric Motor,Hydraulic Motor
Input Type: -Free Input,Hollow Input,Spline Shaft
Output Type: -Free Output,Hollow Input,Spline Shaft
Mounting: -Foot Type,Flange Type,Shaft Mounted

Quick Contact!

+91 98256 76758
+91 90818 27474

Get Inquiry Now

    Key Features of Planetary Gearbox

    • Compact DesignSpace-saving design integrates multiple gears for high power density in a small footprint.
    • High Torque CapacityDistributes load evenly, enabling exceptional torque output for heavy-duty applications.
    • Energy EfficiencyOptimized gear arrangement minimizes energy loss during operation, enhancing performance.
    • Durable ConstructionBuilt with robust materials for high wear resistance and extended operational life.
    • Smooth OperationPrecision engineering ensures quiet and vibration-free performance under varying load conditions.
    • Customizable RatiosMultiple reduction ratio options cater to diverse speed and torque requirements.

    Applications of Planetary Gearbox

    • Robotics
    • Automotive Industry
    • Industrial Machinery
    • Aerospace
    • Medical Equipment
    • Renewable Energy
    • Packaging Industry

    Single Stage Planetary gear box Technical Specification

    Output Input Other Frame Size
    Model Dk6 JP9 H M L dj6 jP9 h N I C P Q R S K T G A LH LF ELE Motor B5
    B201 28 8 31 M8 40 28 8 31 M8 40 100 90 120 120 150 12 14 57 130 222 252 63-90
    B301 38 10 41 M10 60 28 8 31 M8 40 100 120 155 165 205 15 14 75 158 263 284 80-112
    B401 50 14 53.5 M12 80 28 8 31 M8 40 132 138 182 216 256 15 14 104 206 297 317 90-112
    B501 65 16 69 M16 95 50 14 53.5 M12 70 160 169 240 254 310 22 18 134 246 401 430 100-160
    B601 80 22 85.5 M20 110 50 14 53.5 M12 70 160 200 250 300 350 25 18 149 295 488 518 112-180
    B651 80 22 85.5 M20 110 50 14 53.5 M12 70 180 200 260 300 350 25 18 149 295 490 519 112-180
    B701 95 25 100 M24 135 50 14 53.5 M12 70 200 250 305 350 400 25 22 165 345 547 576 132-180
    B801 110 28 116 M24 170 70 20 74.5 M16 110 225 300 350 360 430 25 22 198 375 589 695 132-200
    B901 120 32 127 M24 180 70 20 74.5 M16 110 250 320 400 405 465 30 26 225 420 655 744 160-225

    Double Stage Planetary gear box Technical Specification

    Model Dk6 JP9 H M L dj6 jP9 h N I C P Q R S K T G A LH LF ELE Motor B5
    B202 28 8 31 M8 40 28 8 31 M8 40 100 90 120 120 150 12 14 57 130 271 301 63-90
    B302 38 10 41 M10 60 28 8 31 M8 40 100 120 155 165 205 15 14 75 158 313 333 71-112
    B402 50 14 53.5 M12 80 28 8 31 M8 40 132 138 182 216 256 15 14 104 206 347 367 71-112
    B502 65 18 69 M16 95 50 14 53.5 M12 70 160 169 240 254 310 22 18 134 248 406 415 100-132
    B602 80 22 85.5 M20 110 50 14 53.5 M12 70 160 200 250 300 350 25 18 149 295 562 592 100-160
    B652 80 22 85.5 M20 110 50 14 53.5 M12 70 180 200 260 300 350 25 18 149 295 564 593 100-160
    B702 95 25 100 M24 135 50 14 53.5 M12 70 200 250 305 350 400 25 22 165 345 621 650 112-160
    B802 110 28 116 M24 170 70 20 74.5 M16 110 225 300 350 360 430 25 22 198 375 672 702 112-180
    B902 120 32 127 M24 180 70 20 74.5 M16 110 250 320 400 405 485 30 26 225 420 735 765 132-180

    Triple Stage Planetary gear box Technical Specification

    Model Dk6 JP9 H M L dj6 jP9 h N I C P Q R S K T G A LH LF ELE Motor B5
    B203 28 6 31 M8 40 28 6 31 M6 40 100 90 120 120 150 12 14 57 130 320 350 63-90
    B303 38 10 41 M10 60 28 8 31 M8 40 100 120 155 165 205 15 14 75 158 352 382 63-90
    B403 50 14 53.5 M12 80 28 8 31 M8 40 132 138 182 216 256 15 14 104 206 397 417 63-112
    B503 65 18 69 M16 95 50 14 53.5 M12 70 160 169 240 254 310 22 18 134 248 445 465 71-112
    B603 80 22 85.5 M20 110 50 14 53.5 M12 70 160 200 250 300 350 25 18 149 295 632 662 71-160
    B653 80 22 85.5 M20 110 50 14 53.5 M12 70 160 200 260 300 350 25 18 149 295 634 663 71-160
    B703 95 25 100 M24 135 50 14 53.5 M12 70 200 250 305 350 400 25 22 165 345 691 720 80-160
    B803 110 28 116 M24 170 70 20 74.5 M16 110 225 300 350 360 430 25 22 198 375 747 776 90-160
    B903 120 32 127 M24 180 70 20 74.5 M16 110 250 320 400 405 485 30 26 225 420 810 839 100-160

    Four Stage Planetary gear box Technical Specification

    Model Dk6 JP9 H M L dj6 jP9 h N I C P Q R S K T G A LH LF ELE Motor B5
    B204 28 8 31 M8 40 28 8 31 M8 40 100 90 120 120 150 12 14 57 130 369 399 63-71
    B304 38 10 41 M10 60 28 8 31 M8 40 100 120 155 165 205 15 14 75 158 401 431 63-90
    B404 50 14 53.5 M12 80 28 8 31 M8 40 132 138 182 216 256 15 14 104 206 436 466 63-90
    B504 65 18 69 M16 95 50 14 53.5 M12 70 160 169 240 254 310 22 18 134 248 484 514 71-112
    B604 80 22 85.5 M20 110 50 14 53.5 M12 70 160 200 250 300 350 25 18 149 295 626 647 71-112
    B654 80 22 85.5 M20 110 50 14 53.5 M12 70 180 200 260 300 350 25 18 149 295 628 648 71-112
    B704 95 25 100 M24 135 50 14 53.5 M12 70 200 250 305 350 400 25 22 165 345 685 705 80-112
    B804 110 28 116 M24 170 70 20 74.5 M16 110 225 300 350 360 430 25 22 198 375 817 846 90-160
    B904 120 32 127 M24 180 70 20 74.5 M16 110 250 320 400 405 485 30 26 225 420 880 909 100-160
